JUAL GAS BURNERS (TWO STAGE) RIELLO RS 130 ( 823 T1 ) – ITALY
Seri pembakar RS 130 mencakup rentang pembakaran dari 930 hingga 1300 kW, dan telah dirancang untuk digunakan dalam boiler air panas suhu rendah atau sedang, boiler udara panas atau uap, boiler minyak diatermik. Pengoperasiannya adalah “progresif dua tahap”; pembakar dilengkapi dengan kotak kontrol pengaman pembakar berbasis mikroprosesor yang memberikan indikasi pengoperasian dan diagnosis penyebab kesalahan. Kinerja kipas dan kepala pembakaran yang lebih tinggi, menjamin fleksibilitas penggunaan dan kinerja yang sangat baik pada semua laju pembakaran. Desain eksklusif memastikan dimensi yang lebih kecil, penggunaan dan perawatan yang mudah. Optimalisasi emisi suara dijamin oleh desain khusus sirkuit penghisapan udara dan oleh material kedap suara yang disertakan. Berbagai macam aksesori menjamin fleksibilitas kerja yang lebih tinggi.
SEPESIFIKASI BURNER RS 130
| MODEL | : | RS 130 | |||
| TYPE | : | 823 T1 | |||
| POWER (1) | 2nd stage | kW | : | 930 – 1512 | |
| Mcal/h | : | 800 – 1300 | |||
| min. 1st stage | kW | : | 372 | ||
| Mcal/h | : | 320 | |||
| FUEL | : | NATURAL GAS: G20 – G25 – G31 | |||
| : | G20 | G25 | |||
| – net calorific value | kWh/Nm3 | : | 10 | 8.6 | |
| Mcal/Nm3 | : | 8.6 | 7.4 | ||
| – absolute density | kg/Nm3 | : | 0.71 | 0.78 | |
| – max delivery | Nm3/h | : | 151 | 175 | |
| – pressure at maximum delivery (2) | mbar | : | 8.6 | 12.7 | |
| Operation | : | • On-Off (1 stop min each 24 hours). | |||
| : | • Two-stage (high and low flame) and one-stage (all – nothing) | ||||
| Standard applications | : | Boilers: water, steam, diathermic oil | |||
| Ambient Temperature | °C | : | 0 – 40 | ||
| Combustion air temperature | °C max | : | 60 | ||
| Noise levels (3) Sound Pressure | dB(A) | : | 78.5 | ||
| Sound Output | : | 89.5 | |||

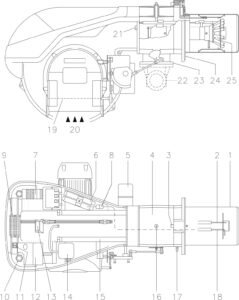

TEKNIKAL DESKRIPSI BURNER
- Combustion head
- Ignition electrode
- Screw for combustion head adjustment
- Pipe coupling
- Servomotor controlling the gas butterfly valve and the air damper valve (by means of an variable profile cam mechanism). When the burner is not operating, the air damper is fully closed in order to reduce to a minimum the heat dispersion from the boiler due to the flue draught which draws air from the fan air intake.
- Extensions for slide bars
- Motor contact maker and thermal relay with reset button
- Plug-socket on ionisation probe cable
- Terminal board
- Cable grommets for electrical wiring (to be carried out by the installer)
- Two switches:
- one for “on – off burner”
- one for “1st – 2nd stage”
- Control box with lockout pilot light and lockout reset button
- Flame inspection window
- Minimum air pressure switch (differential type)
- Slide bars for opening the burner and inspecting the combustion head
- Gas pressure test point and head fixing screw
- Air pressure test point
- Flame sensor probe
- Air damper
- Fan air inlet
- Screw securing fan to pipe coupling
- Gas input pipe
- Gas butterfly valve
- Boiler fixing flange
- Flame stability disc Two types of burner failure may occur:
Jika Anda tertarik dengan salah satu Produk Burner yang kami tawarkan, atau memerlukan informasi lebih lanjut, silakan hubungi staf penjualan kami sekarang untuk katalog terperinci kami.
Hubungi Kami
PT. INDIRA MITRA BOILER
