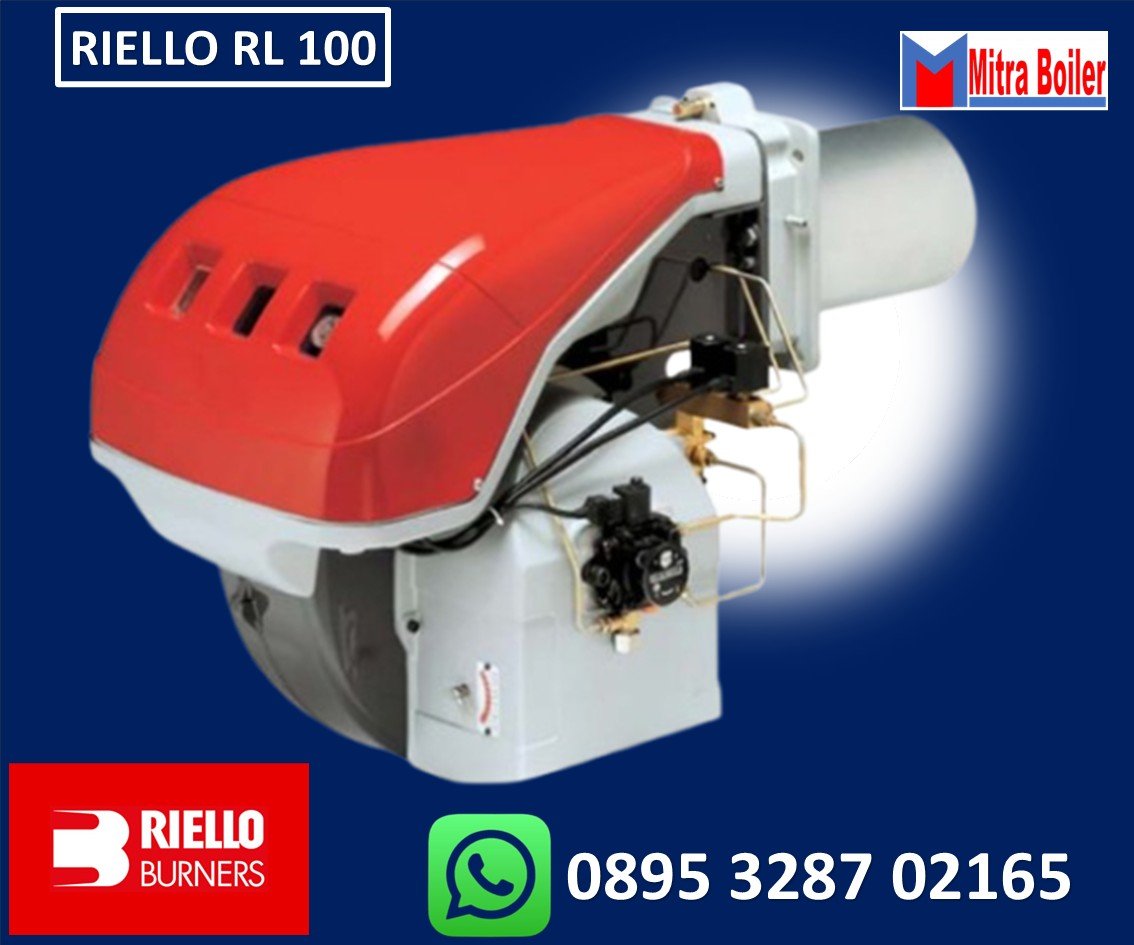

Pembakar seri RL 100 mencakup jarak tembak dari 356 hingga 1186 kW, dan telah dirancang untuk digunakan pada ketel air panas bersuhu rendah atau sedang, ketel uap atau udara panas, ketel minyak diatermik. Operasi adalah “dua tahap”; pembakar dilengkapi dengan panel kontrol berbasis mikroprosesor, yang memasok indikasi status pembakar dan penyebab kesalahan.

• CODE : 3475230 – 3475232
• MODEL : RL 100
• TYPE : 661 T1

TECHNICAL DATA

• MODEL : RL 100
• TYPE : 661 T1
• OUTPUT DELIVERY (1) 2nd stage : 711 – 1186 kW , 612 – 1020 Mcal/h , 60 – 100 kg/h
• OUTPUT DELIVERY (1) 1st stage : 356 – 711 kW , 306 – 612 Mcal/h , 30 – 60 kg/h
• FUEL : LIGHT OIL/SOLAR
• – Net calorific value : 11.8 kWh/kg, 10,2 (10.200 kcal/kg),
  – Density : 0.82 – 0.85 kg/dm
  – Viscosity at 20 °C mm2/s max 6 (1,5 °E – 6 cSt)
• OPERATION – Intermittent (min. 1 stop in 24 hours).
  – Two-stage (high and low flame) and single-stage (all – nothing).
• NOZZLES number 2
• STANDARD APPLICATIONS Boilers: water, steam, diathermic oil
• AMBIENT TEMPERATURE : °C 0 – 40
• COMBUSTION AIR TEMPERATURE : °C max 60
• PUMP delivery (at 20 bar) kg/h 220
  pressure range bar : 10 – 20
  fuel temperature : ° C max 60
• ELECTRICAL PROTECTION : IP 44
• NOISE LEVELS (2) : dBA 77

ELECTRICAL DATA

• Motor IE1
• POWER SUPPLY – V: 230 – 400 with neutral ~ +/- 10%, Hz: 50 – three-phase
• ELECTRICAL MOTOR – rpm: 2860, kW: 1,5, V: 230/400, A: 6.4/3.7
• IGNITION TRASFORMER – V1 – V2: 230 V – 2 x 5 kV, I1 – I2: 1.9 A – 30 mA
• ELECTRICAL POWER CONSUMPTION – kW max: 2.6

• Motor IE2
• POWER SUPPLY – V: 230 – 400 with neutral ~ +/- 10%, Hz: 50 – three-phase
• ELECTRICAL MOTOR – rpm: 2860, kW: 1,5, V: 230/400, A: 5.5/3.4
• IGNITION TRASFORMER – V1 – V2: 230 V – 2 x 5 kV, I1 – I2: 1.9 A – 30 mA
• ELECTRICAL POWER CONSUMPTION – kW max: 2.5
