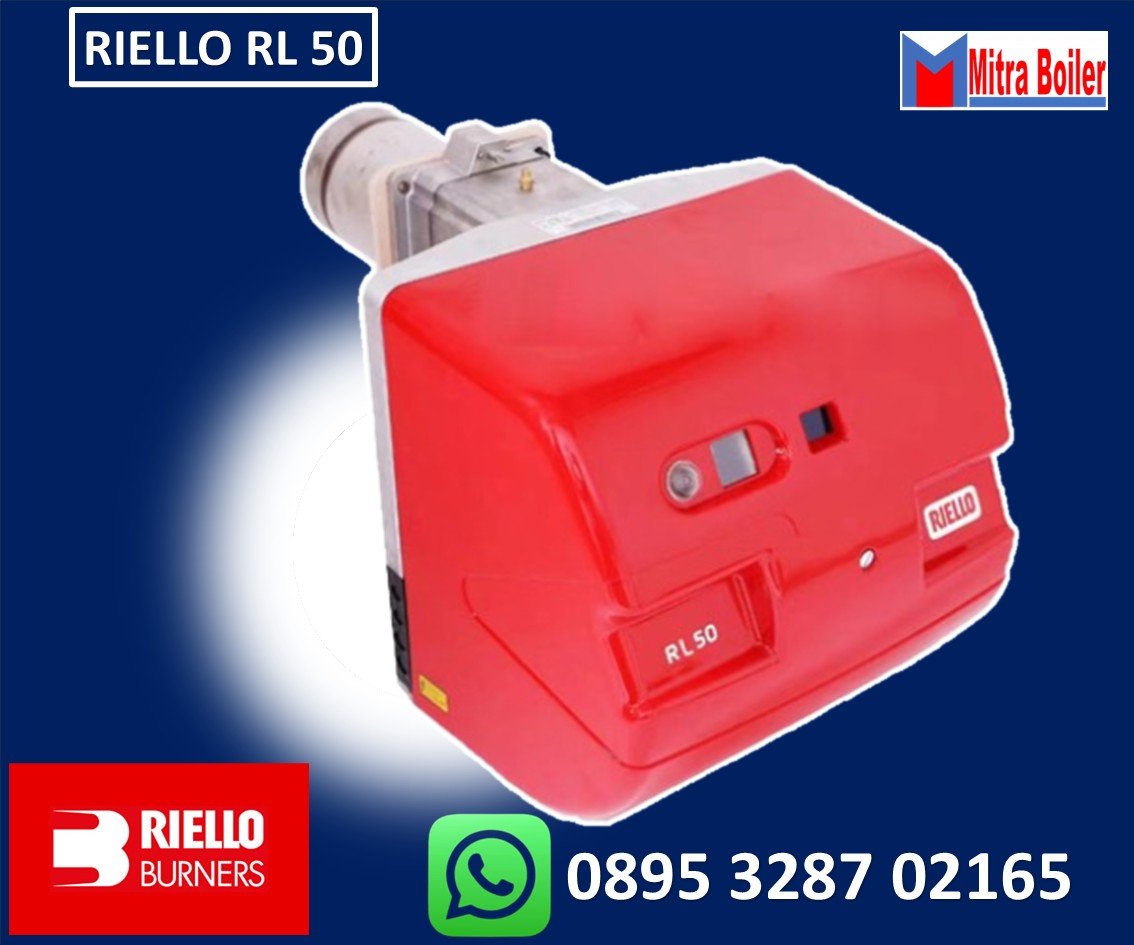

BURNER RIELLO LIGHT OIL (TWO STAGE) RL 50

BURNER RIELLO LIGHT OIL (TWO STAGE) RL 50

Pembakar seri RL50 mencakup jarak tembak dari 148 hingga 593 kW, dan telah dirancang untuk digunakan pada ketel air panas bersuhu rendah atau sedang, ketel uap atau udara panas, ketel minyak diatermik. Operasi adalah “dua tahap”; pembakar dilengkapi dengan panel kontrol berbasis mikroprosesor, yang memasok indikasi status pembakar dan penyebab kesalahan.

• CODE       : 3474630 – 3474632
• MODEL   : RL 50
• TYPE        : 654 T1

TECHNICAL DATA

• MODEL : RL50
• TYPE : 654 T1
• OUTPUT DELIVERY (1)  2nd stage : 296 – 593 kW , 255 – 510  Mcal/h , 25 – 50 kg/h
• OUTPUT DELIVERY (1)  1st stage   : 148 – 296 kW , 127 – 255 Mcal/h , 12,5 – 25 kg/h
• FUEL : LIGHT OIL/SOLAR
• – Net calorific value : 11,8 kWh/kg, 10,2 (10.200 kcal/kg),
  – Density : 3 0,82 – 0,85 kg/dm
  – Viscosity at 20 °C mm2/s max 6 (1,5 °E – 6 cSt)
• OPERATION  – Intermittent (min. 1 stop in 24 hours).
  _ Two-stage (high and low flame) and single-stage (all – nothing).
• NOZZLES number 2
• STANDARD APPLICATIONS Boilers: water, steam, diathermic oil
• AMBIENT TEMPERATURE °C 0 – 40
• COMBUSTION AIR TEMPERATURE °C max 60
• ELECTRICAL SUPPLY V 230 – 400 with neutral ~ +/-10% , Hz50 – three-phase
• ELECTRIC MOTOR – Rpm: 2800, W:650, V  : 220/240 – 380/415, A  : 3,0 – 1,7
• MOTOR CAPACITOR µF/V 12,5/450 16/450
• IGNITION TRASFORMER : V1 – V2 230 V – 2 x 5 kV, I1 – I2 1,9 A – 30 mA
• ELECTRICAL POWER CONSUMPTION : W max 750
• PUMP delivery (at 20 bar) kg/h 88
  pressure range bar  : 4-18
  fuel temperature : ° C max 60
• ELECTRICAL PROTECTION : IP 44
• IN CONFORMITY WITH EEC DIRECTIVES : 2006/42 – 2006/95 – 2004/108
• NOISE LEVELS (2) : dBA 75,0

KATALOG RL_TS0035UK03
