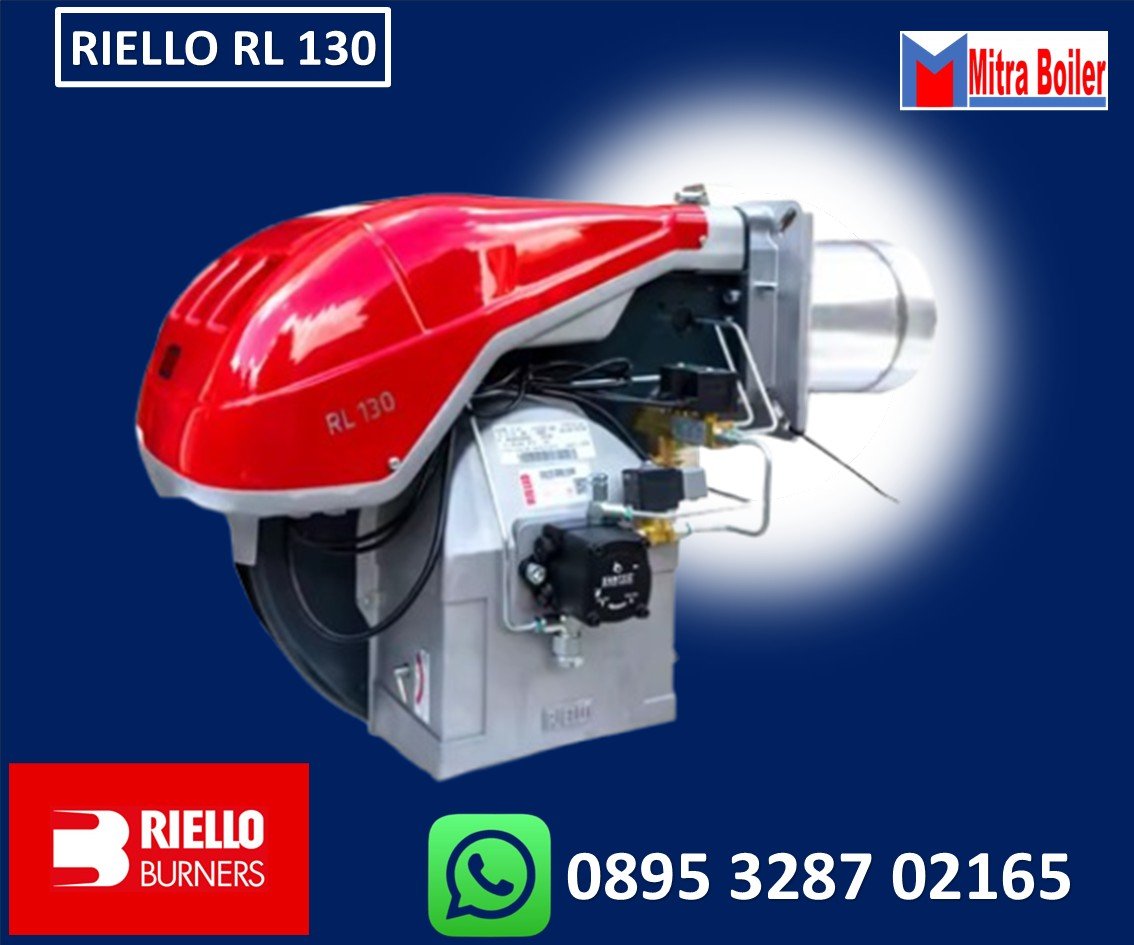

BURNER RIELLO LIGHT OIL (TWO STAGE) RL 130

BURNER RIELLO LIGHT OIL (TWO STAGE) RL 130

Pembakar seri RL 130 mencakup jarak tembak dari 486 hingga 1540 kW, dan telah dirancang untuk digunakan pada ketel air panas bersuhu rendah atau sedang, ketel uap atau udara panas, ketel minyak diatermik. Operasi adalah “dua tahap”; pembakar dilengkapi dengan panel kontrol berbasis mikroprosesor, yang memasok indikasi status pembakar dan penyebab kesalahan.

• CODE : 3475430 – 3475432
• MODEL : RL 130
• TYPE : 662 T1

TECHNICAL DATA

• MODEL : RL 130
• TYPE : 662 T1
• OUTPUT DELIVERY (1) 2nd stage : 948 – 1540 kW , 816 – 1325 Mcal/h , 80 – 130 kg/h
• OUTPUT DELIVERY (1) 1st stage : 486 – 948 kW , 418 – 816 Mcal/h , 41 – 80 kg/h
• FUEL : LIGHT OIL/SOLAR
• – Net calorific value : 11.8 kWh/kg, 10,2 (10.200 kcal/kg),
  – Density : 0.82 – 0.85 kg/dm
  – Viscosity at 20 °C mm2/s max 6 (1,5 °E – 6 cSt)
• OPERATION – Intermittent (min. 1 stop in 24 hours).
  – Two-stage (high and low flame) and single-stage (all – nothing).
• NOZZLES number 2
• STANDARD APPLICATIONS Boilers: water, steam, diathermic oil
• AMBIENT TEMPERATURE : °C 0 – 40
• COMBUSTION AIR TEMPERATURE : °C max 60
• PUMP delivery (at 20 bar) kg/h 220
  pressure range bar : 10 – 20
  fuel temperature : ° C max 60
• ELECTRICAL PROTECTION : IP 44
• NOISE LEVELS (2) : dBA 78.5

ELECTRICAL DATA

• Motor IE1
• POWER SUPPLY – V: 230 – 400 with neutral ~ +/- 10%, Hz: 50 – three-phase
• ELECTRICAL MOTOR – rpm: 2860, kW: 2,2, V: 230/400, A: 8.5/4.9
• IGNITION TRASFORMER – V1 – V2: 230 V – 2 x 5 kV, I1 – I2: 1.9 A – 30 mA
• ELECTRICAL POWER CONSUMPTION – kW max: 3.2

• Motor IE2
• POWER SUPPLY – V: 230 – 400 with neutral ~ +/- 10%, Hz: 50 – three-phase
• ELECTRICAL MOTOR – rpm: 2860, kW: 2,2, V: 230/400, A: 7.9/4.6
• IGNITION TRASFORMER – V1 – V2: 230 V – 2 x 5 kV, I1 – I2: 1.9 A – 30 mA
• ELECTRICAL POWER CONSUMPTION – kW max: 3.1

KATALOG RL_TS0035UK03
